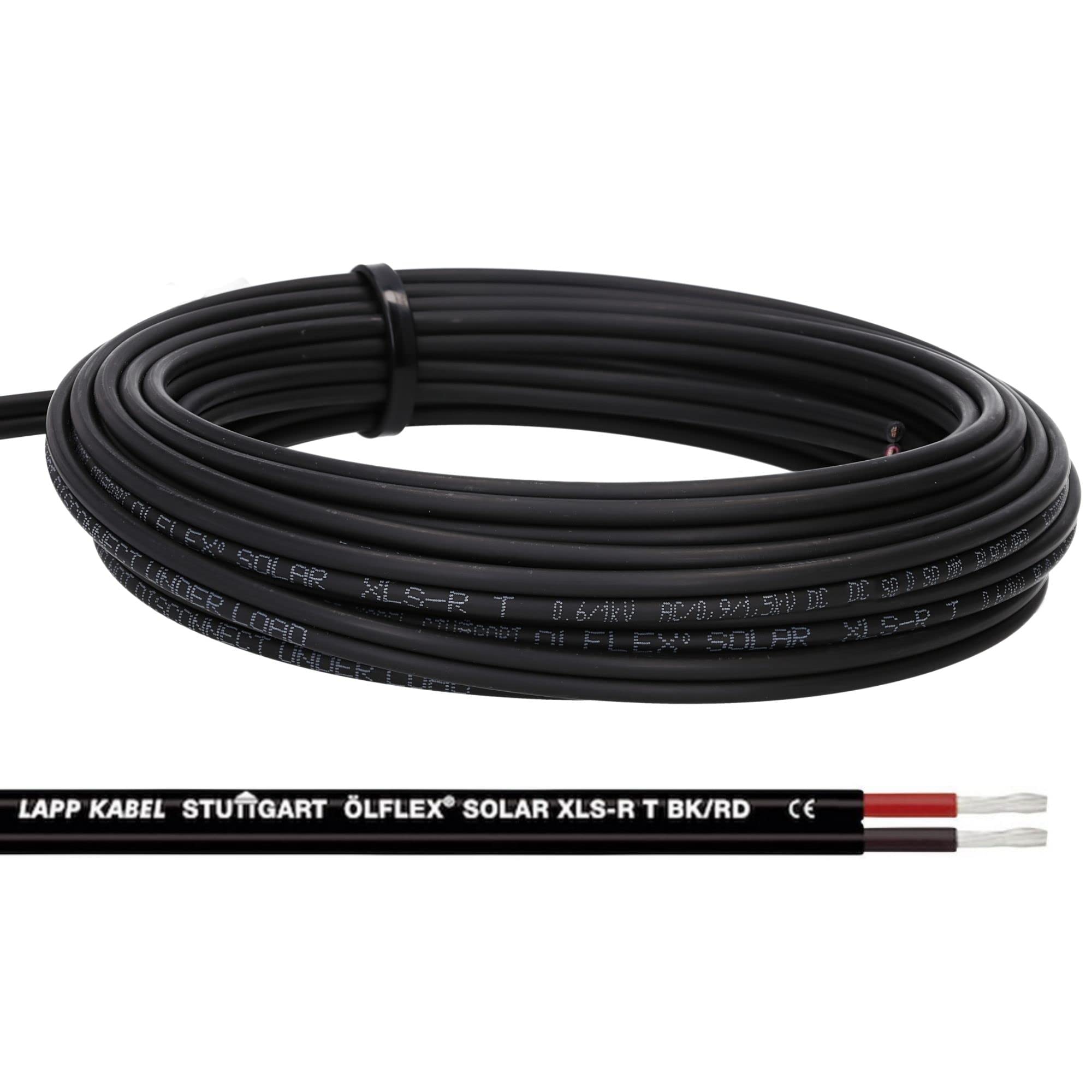

10 metres Lapp ÖLFLEX SOLAR XLS-R T solar cable 2X4 mm² BK/RD solar cable twin cable, 10m 2x4mm²

Ölflex Solar XLS-R T BK/RD solar cableElectrical properties:Rated voltage U0/U according to VDE: AC 600/1000 V / DC 900/1500 VMaximum permitted DC voltage: 1.8 kV DC (conductor/conductor, non-earthed system)Test voltage AC 6.5 kV voltage resistance tests according to EN 50395Thermal features:Fixed temperature range: -40 °C to +100 °C max. Conductor temperature:Short circuit temperature +200°CFlexible laying temperature: max. -25 °CThemed service life according to EN 60216-2Thermal pressure resistance according to EN 60811-3-1Moisture heat test according to EN 60068-2-78 at 85% humidityMechanical features:Minimum bending radius occasionally moved: 15 x wire diameter.Fixed: 5 x wire diameter.Dynamic penetration: according to requirements profile AK 411.2.3 Annex FTear resistance: according to requirements profile AK 411.2.3 Annex GTest of insulation and sheath tear resistance as well as elongation: according to EN 60811Chemical propertiesOzone resistance: according to EN 50396 part 8.1.3 procedure BWeather / UV resistance according to HD 605/A1Fire behaviour flame retardant according to IEC 60332-1-2Halogen free according to IEC 60754-1Acid and alkali resistance according to EN 60811-2-1 (oxalic acid and caustic soda)EC guidelinesThe lines are compliant with EC Directives 2006/95/EC (Low Voltage Directive) and 2002/95/EC and 2011/65/EC (RoHS, Restriction of the use of certain hazardous substances).Installation in the soil.Solar cables can generally be laid in protective pipes suitable for ground installation in the soil if it is ensured that there is no permanent contact with water and waterlogging. The installation of the cables and the correct execution of the cable trench must comply with VDE 0100 Part 520 or comparable standards.
