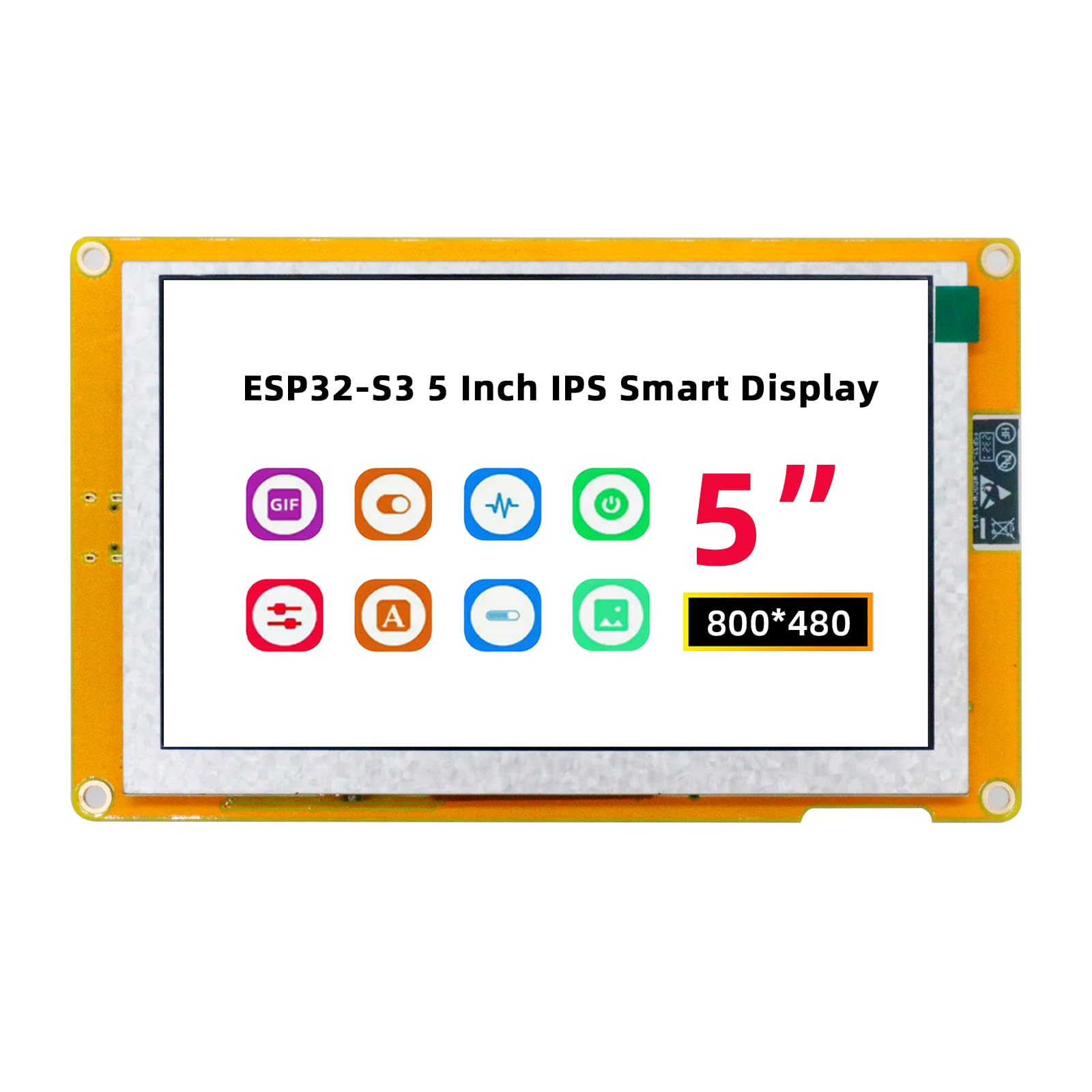

APKLVSR 5.0 Inch ESP32 Display, WiFi Bluetooth Dual Core CPU ESP32 S3 Display TFT Module Compatible with Arduino/LVGL

APKLVSR 5.0 Inch ESP32 Display, WiFi Bluetooth Dual Core CPU ESP32 S3 Display TFT Module Compatible with Arduino/LVGL

Parameters:
Uses a power-saving dual-core 32-bit CPU that can be used as an application processor.
The main frequency is up to 240 MHz and the computing power up to 600 DMIPS
Built-in 520 KB S-RAM.
Supports UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Supports OV2640 and OV7670 cameras, built-in flash
Supports uploading images via WiFi
Support TF card
Supports multiple sleep modes.
Embedded Lwip and FreeRTOS
Supports STA/AP/STA+AP working mode
Supports Smart Config/AirKiss network configuration with one click
Supports secondary development

Specifications:
Operating voltage: 4.75-5.25 V.
SPIFlash standard 32 Mbit.
Internal RAM 520 KB.
WLAN 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard.
Supported interface (2 Mbps) UART, SPI, I2C, PWM
Supports TF card, maximum support 4G.

IO port 9
Serial Portrait Rate Standard 115200 bps
Spectrum range: 2400 ~ 2483.5 MHz.
Antenna shape onboard PCB antenna, gain 2dBi
Image output format: JPEG (support OV2640 only), BMP, GREYSCALE
Packaging method DIP-16.
Transmission power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1 Mbps: -90 dBm.
CCK, 11Mbps: -85dBm.
6Mbps (1/2BPSK): -88dBm.
54Mbps (3/464-QAM): -70dBm.
MCS7 (65Mbps, 72.2Mbps): -67dBm.
Power consumption turn off flash: 180 mA@5 V.
Turn on flash and adjust brightness to maximum: 310mA@5V.
Deep sleep: the lowest power consumption can reach 6mA @ 5V.
Modern sleep: the lowest can reach 20mA @ 5V.
Light sleep: the lowest can be 6.7mA at 5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature: -20 °C ~ 70 °C.
Storage environment: -40°C ~ 125°C, <90% RH.

Application:
Image transmission of smart devices in the home
Wireless surveillance
Smart Farming
Wireless QR detection.
Wireless tracking system signal.
And other IoT applications


Package includes:

1 x 5.0 inch ESP32 S3 display module.
