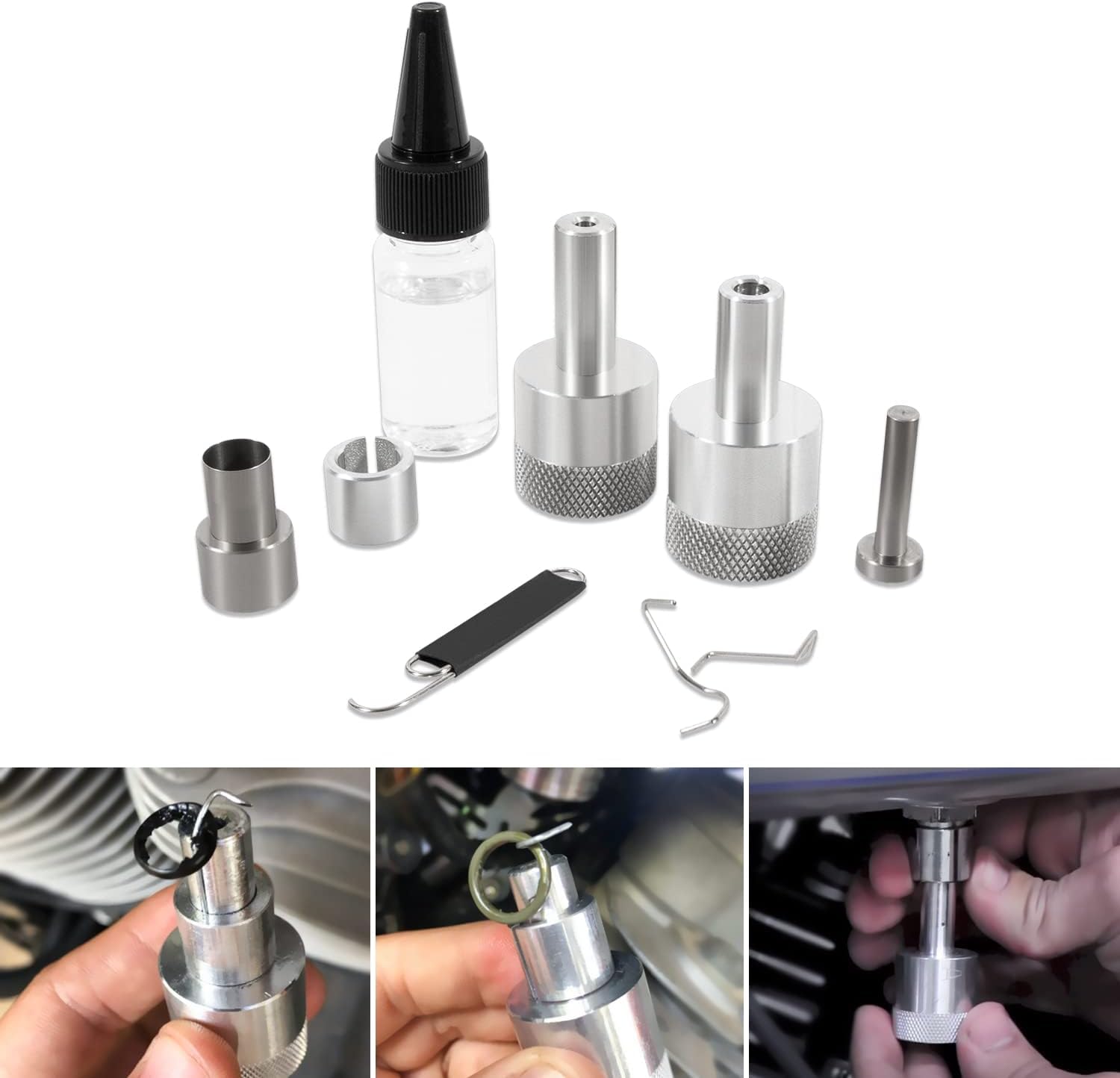

CTcar Fuel Check Valve Repair Tool Fit Harley Davidson Replacement MC300 MC400 Fuel Check Valve Conversion Kit Installation Tool Kit

Functions: 1, disconnect fuel line from check valve, empty internal fuel line: quickly disconnect the cuff and push it up. To release the fuel line, wrap the screwdriver in a rag and press the valve upwards. 2. Remove the lower ring from the check valve (a handle tool A, the shorter hook, the hook holder). Simply slide the hook holder over the dumbbell tool A, take the hook, insert it into its groove and turn the collar to hold the hook in place. Go to the check valve, lift the collar and insert the tanda tool. Turn several turns clockwise and then pull down, the O-ring is pulled out of its groove and pops out. 3. Remove the top O-ring and components (a handle tool B, the longer hook and the hook holder). Slide the holder over the B handle, insert the hook into the groove and turn the holder straight so that the hook stays in place. Come to your check valve, lift the assembled tool up and insert it. Turn it clockwise after several turns to grip the O-ring. Once you are sure that you grip the O-ring, pull it straight down, the O-ring. The components fall directly out of the check valve. 4. Install the new top ring of the check valve and the spring in your check valve (sleeve, handle also B). Insert the top O-ring into the end of the sleeve tool. Insert the valve into the end of the sleeve tool so that the nipple end of the valve goes through the middle of the O-ring. Slide the valve and O-ring into the sleeve until the valve is flush with the edge of the sleeve. Insert the narrow end of the spring into the open end of the valve. Push the quick release ring of the check valve upwards and insert the sleeve loaded with new components completely into the check valve until it is fully inserted. Also use handle B, insert it at the bottom of the sleeve and push it all the way up to insert the new O-ring and components. Once all components are seated, remove both the handle and the sleeve
