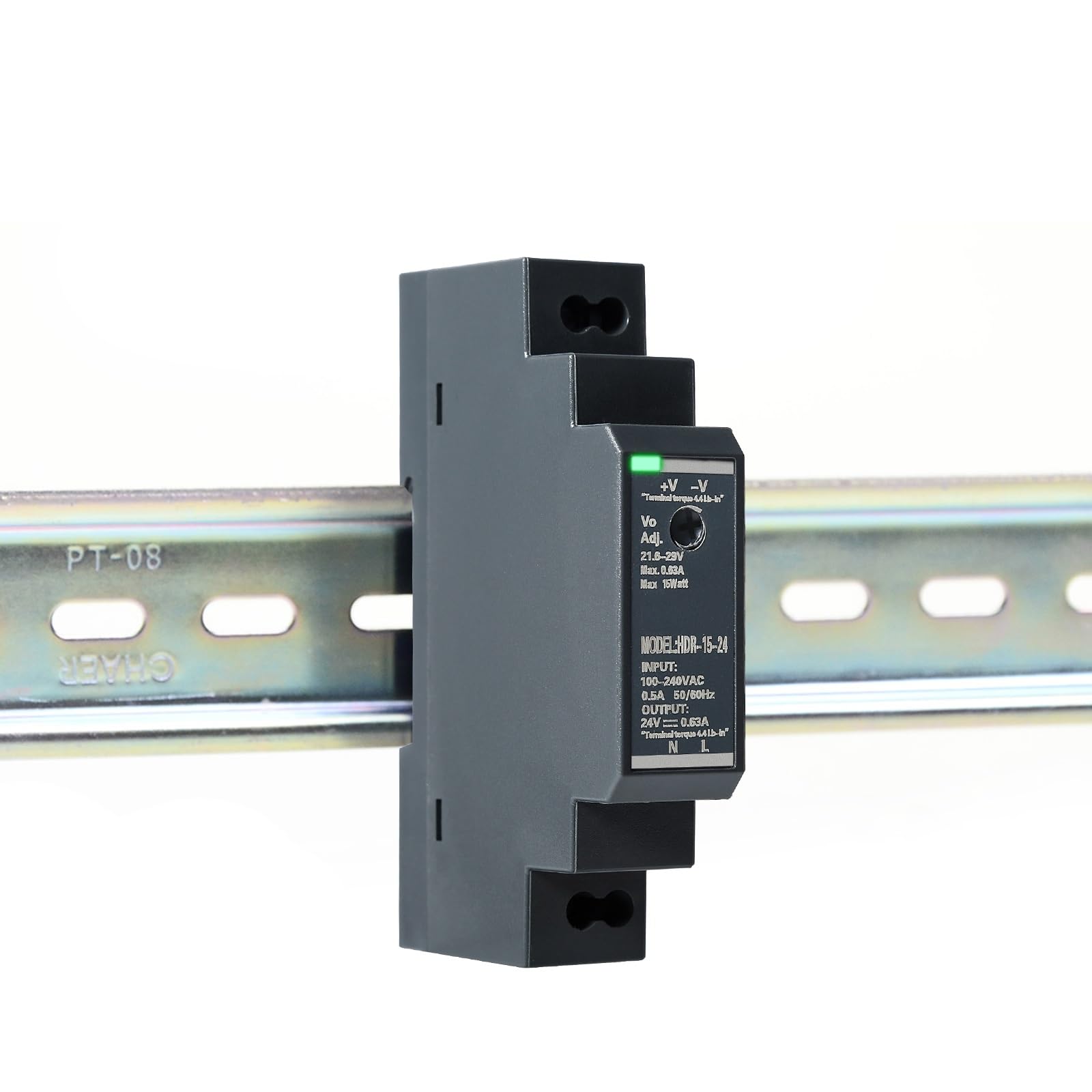

DEWIN Switching Power Supply,24V Dinrail Transformer Din Rail Power Supply Transformer for Din Rail for Industrial Automation Equipment HDR-15W-24V 0.63A

Features:
1.The switching power supply converts the input ac power into a stable dc voltage and provides it to equipment and systems. It is widely used in industrial automation control systems, distribution boxes, instrumentation, communication equipment and other fields.
2.Din rail power supply full-power all copper transformer, strong conductivity, not easy to heat; high-quality magnetic core enameled wire, high temperature resistance,strong heat dissipation, low working temperature and good safety performance.
3.Power supply made of full-body high flame-retardant pc material,flame retardant,hollow design, faster heat dissipation,long-lasting operation, and protection of the internal components of the switching power supply.
4.LED displays the power-on status, with overvoltage protection, overload protection, overcurrent protection, short circuit protection and other functions. The performance is stable,better protecting your electricity safety.
5.Shape power supply short din rail small size, low power consumption, anti-interference, stable output.easy to install,and and can be installed directly on the din rail. Enclosed design, contact protected screw connection, universal input.

Specifications:
Product name: Switching power supply
Product model: HDR
Material: PC
Input voltage: AC100V-240V
Output voltage: DC24V
Output current: 0.63A /1.5A
Rated power: 15.2W /36W
Voltage adjustment range: 21.6-26.4V /21.6-29V
Voltage accuracy: ±1.0%
Output mode: single group output
Working temperature: -10-+50?

Notes:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing list:
1 * Switching power supply
