DollaTek GP2Y1014AU PM2.5 Dust Detection Sensor Module For Arduino For Air Conditioning

DollaTek GP2Y1014AU PM2.5 Dust Detection Sensor Module For Arduino For Air Conditioning

Vendor: DollaTek
AED. 131.00
AED. 196.00
AED. 131.00
Subtotal: AED. 131.00
DollaTek GP2Y1014AU PM2.5 Dust Detection Sensor Module For Arduino For Air Conditioning

DollaTek GP2Y1014AU PM2.5 Dust Detection Sensor Module For Arduino For Air Conditioning

AED. 196.00 AED. 131.00
DollaTek GP2Y1014AU PM2.5 Dust Detection Sensor Module For Arduino For Air Conditioning

DollaTek GP2Y1014AU PM2.5 Dust Detection Sensor Module For Arduino For Air Conditioning

AED. 196.00 AED. 131.00
Description
Description
x
Description:
Pm2.5 Air Particle Monitor to detect what levels of PM2.5 around you and take appropriate precautions if need.
This Pm2.5 Sensor Module based on optics works well in detecting very delicate particle, like cigarette smoke, is a commonly used system of air purifier.
This device contains IR LED and photoeletric transistor. Arranging them with across corners can detect the reflected light of dust in the air. It has a ultra-low power consumption(Max at 20mA, Typical at 11mA ), and can be equipped with sensors up to 7VDC. Analog voltage is proportional to measured concentration of dust , and sensitivity is 0.5V/0.1mg/m3.

Specification
Power Voltage: 5-7V
Working Temperature: -10-65 ?
Current Consumption:Max 20mA
Detecting Value of Minimum Particle: 0.8?
Sensitivity:0.5V/(0.1mg/m3)
Voltage of Cleaning Air: 0.9V(Typical)
Storage Temperature:-20~80?
Service Life:5 Years
Size:62mm×32mm×20mm

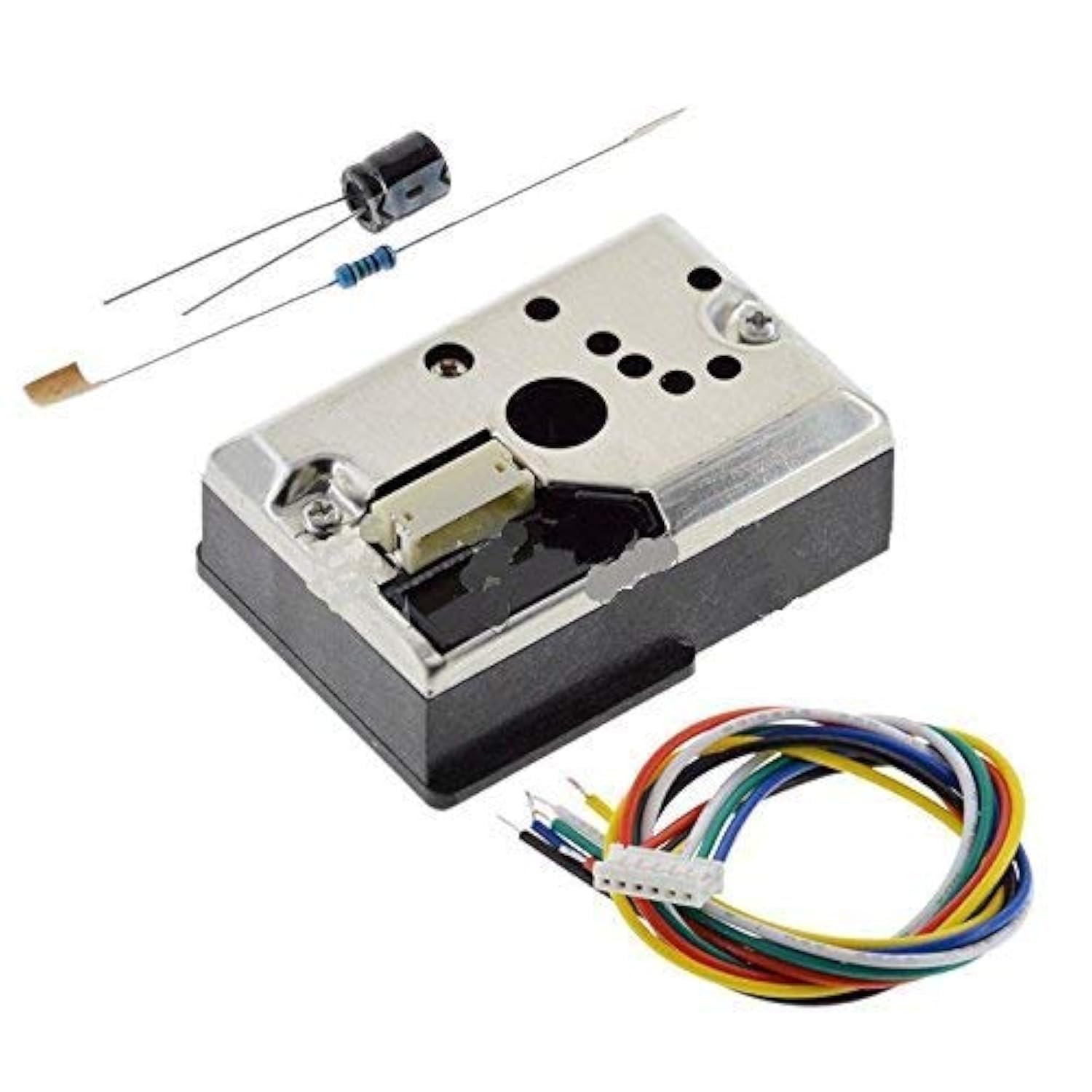

Package Included:
1 X Wiring 2.0mm-6P
1 X 150 ohm resistor 1/4W
1 X 220uF electrolytic capacitor

Note:
The data obtained from the test is compared with the air quality:
3000 + = very poor
1050-3000 = poor
300-1050 = General
150-300 = good
75-150 = Very good
0-75 = very good
