EGS002 "EG8010 + IR2110" Driver Module + LCD Pure Sine Wave Inverter Driver

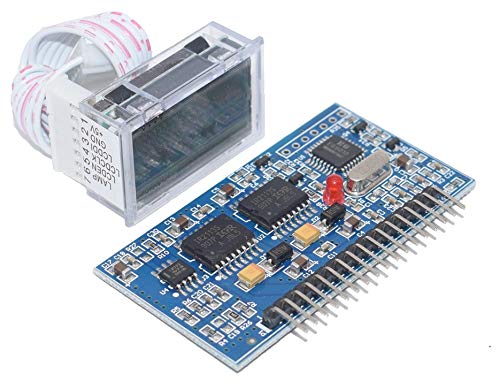

EGS002 "EG8010 + IR2110" Driver Module + LCD Pure Sine Wave Inverter Driver Board

EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The Connection EGS002 driver board and LCD cable must use shielded cable. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions.

Specifications:

- 5V single power supply
- Pin set up four kinds of pure sine wave output frequency: fixed frequency 50 hz pure sine wave; 60 hz fixed frequency pure sine wave; 0-100 hz pure sine wave frequency is adjustable; 0-400 hz pure sine wave frequency is adjustable.
- Unipolar and bipolar modulation
- Comes with deadband control, pin set up 4 dead time: 300nS dead time; 500nS dead time ; 1.0uS dead time ; 1.5uS dead time
- External 12MHz crystal oscillator
- PWM carrier frequency 23.4KHz
- Voltage, current, real time temperature feedback
- Overvoltage, undervoltage, overcurrent and overheating protection
- Soft-start mode pin setting the response time of 1S
- Serial communication to set the output voltage, frequency and other parameters External
- External serial port 128 * 32 LCD module 1602 display the voltage, frequency, temperature and electric current of the inverter and other information

Packet Contains:

1pc x EGS002 "EG8010 + IR2110" Driver Module + LCD Pure Sine Wave Inverter Driver Board
