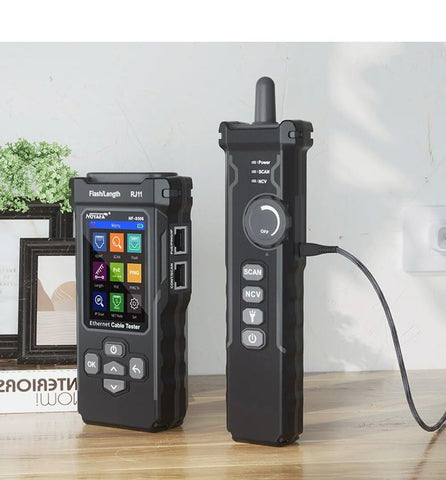

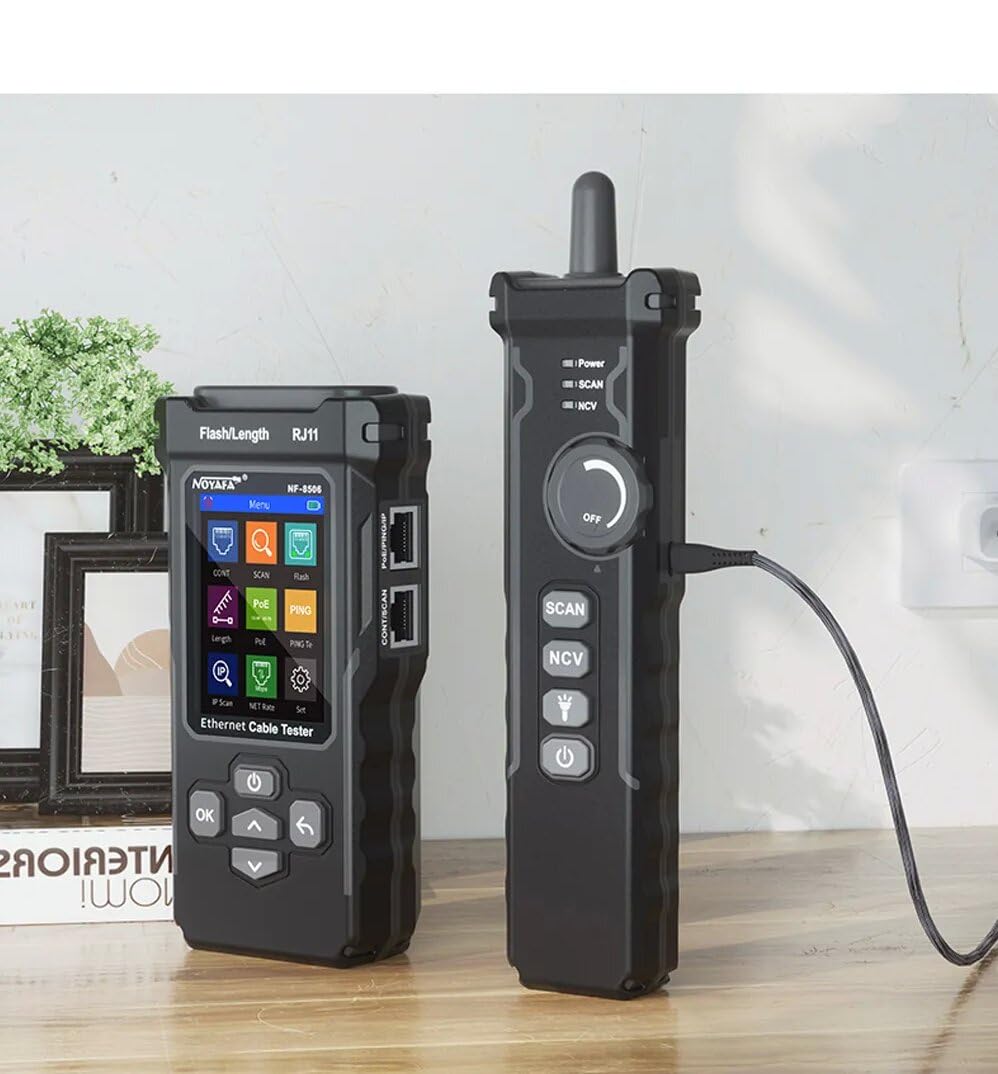

GuliTech NF-8506 Network Cable Tester Supports PING test/IP scan/network port speed Multifunction Cable Tracker finding tool(NF-8506)

Model?NF-8506
Cable Scan?Digital Mode /Analog Mode
Transmitter
1.Cable Continuity Test?Remote & Switch
2.Cable Length Test?Range: 5?200m (±3m)
3.Port Flash?10M/100M/1000M
4.POE?Mid-Span/End-Span/AT-4 pairs/POEvoltage test
5.Link Speed?10M/100M/1000M/Duplex Mode (Full Duplex/ Half Duplex)
6.Battery?3.7 V Lithium Battery
7.Function?Ping Scan /IP Scan Function
8.Transmitter Dimension?150×75×35mm
Receiver
1.Led Light
2.Ear Phone
3.Battery?3.7 V Lithium Battery
4.Receiver Dimension?200×50×33mm
Key features:
6.Two Modes: Digital Mode / Analog Mode, Customers can use UP/ Down to switch.
7.Digital Mode: Anti- interference, when tracking cables with load from 1000M switches, customers were suggested use this mode.
8.Analog Mode: With little noise, customers were suggested to use this 9.mode when tracking cables without load.
10.Transmitter:Default set to Digital mode, use UP/Down button to switch between the two modes.
11. Test Ping?Customers were suggested to set IPV4 for the first time to use Ping test function, after enter the Ping test function customers can use UP/Down button to choose "Set IP" to set the local IP, Subnet Mask, and Gateway, after setting these, customers need to save the settings then can return to use the Ping scan functions.
12. Balayage IP?Using UP/Down button to choose "Set IP' to set the local IP, Subnet Mask, and Gateway, after setting these, customers need to save the settings then can return to use the IP scan functions.
13. Test de commutateur?After testing, the testing result will show the standard of the switch (10M/100M/1000M) and also the duplex mode of the switch.
14.PS: After testing, customers need to reprocess the whole steps for new port testing to ensure the accuracy of the testing.
15. Réglages?Customers can set language, backlight level, backlight time, auto default setting, about etc.
