HO ASF 50-Ton Truck, 33" C88 Ribbed Wheels (2)
Vendor:
Kadee
- AED. 296.00
-
AED. 444.00 - AED. 296.00
- Unit price
- per
Subtotal:
AED. 296.00
Couldn't load pickup availability
Description

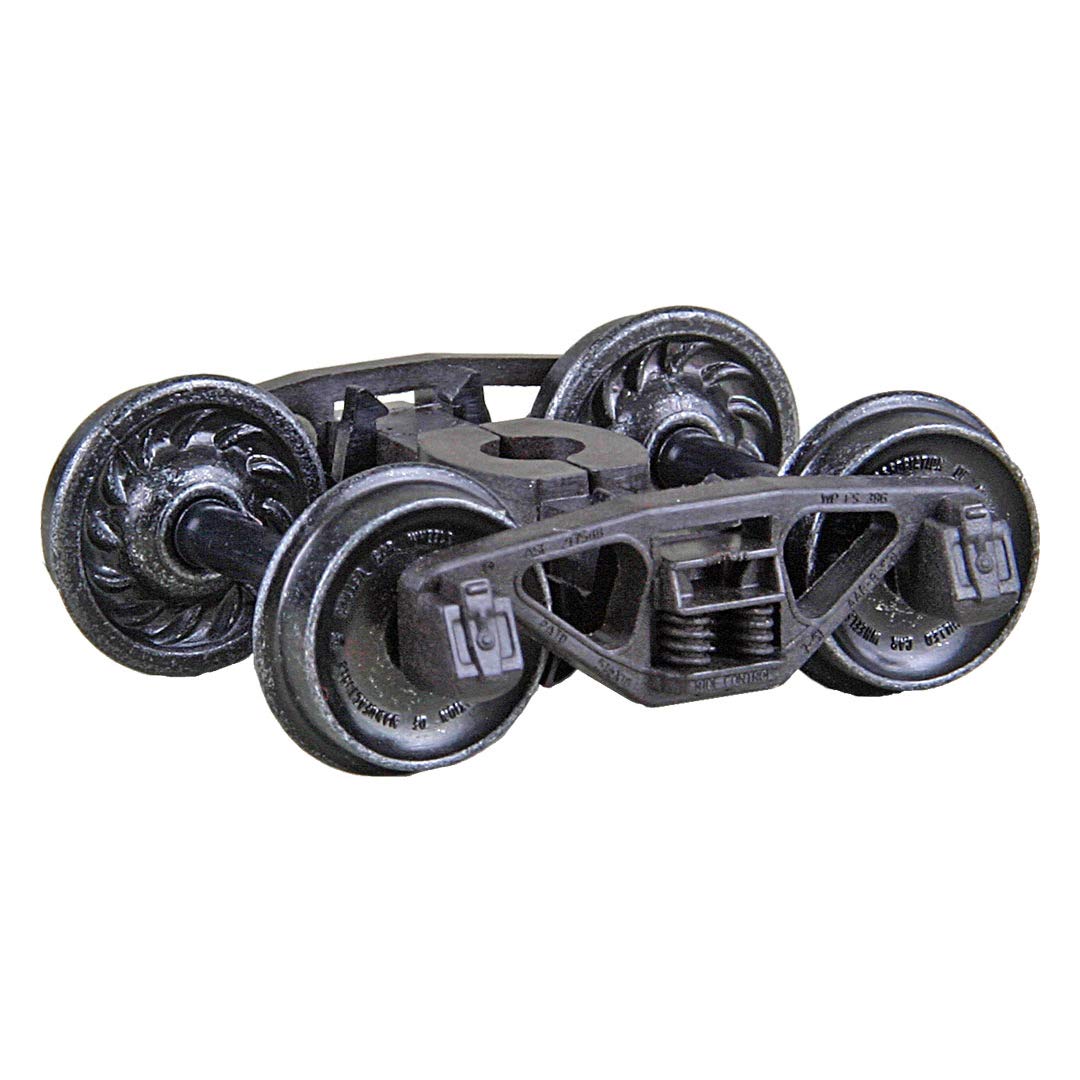

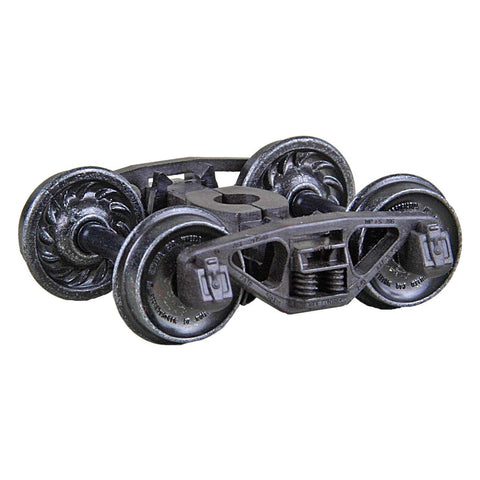

x#1563 A.S.F. Ride Control 50-Ton Self Centering Trucks with 33" Ribbed Back Code 88 Semi-Scale Wheels - HO Scale
"HGC" Two Piece Fully Equalized Trucks
The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track.

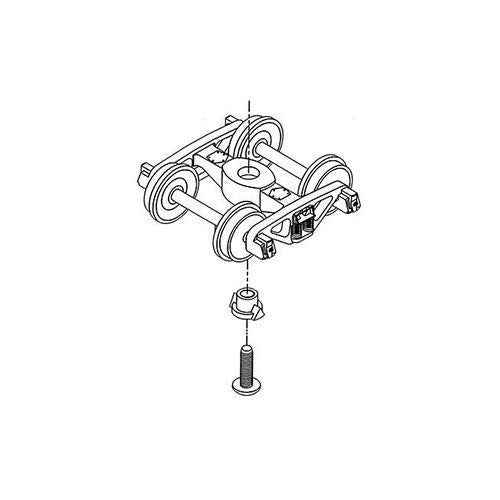

Mounts with a #2 or 2-56 screw.
The A.S.F. A-3 Ride Control 50-ton freight truck was introduced in the 1940's and is one of the forerunners of modern freight trucks. Features embodied into this design include a longer spring travel, no spring planks and constant friction control using friction castings in the bolster to dampen excessive lateral roll of the car. These design features allowed for a higher train speed with less danger of derailment than previous designs. ASF sold over 140,000 sets by 1949. This truck is excellent for modeling the transition era up to 1994 when friction bearings were no longer allowed in interchange service.
"HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance.HO-Scale
"HGC" Two Piece Fully Equalized Trucks Features:
Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track.

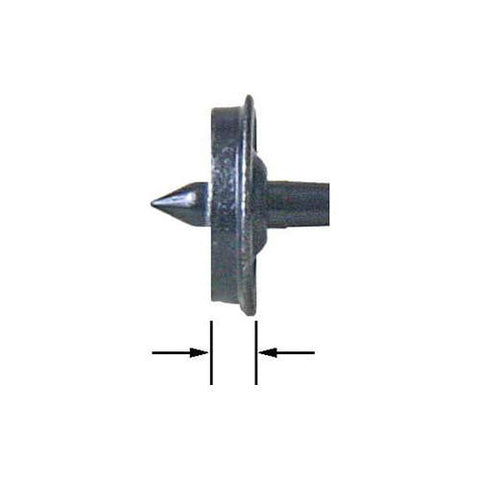

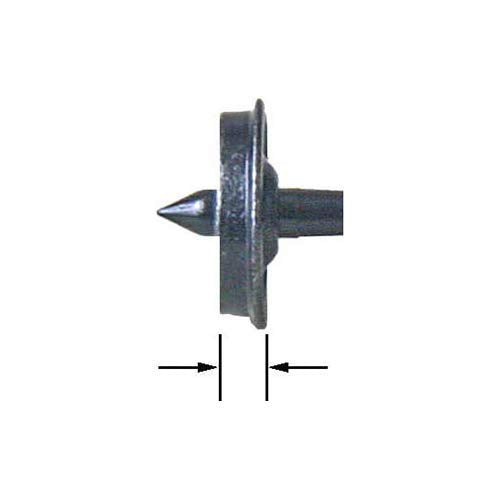

Code 88 (.088) #533 33" Ribbed Back Wheels
"HGC" Weighs nearly the same as Metal Trucks
Superior Rolling Ability
Clip on Brake Pads
Accurate Markings
Incredible Detail True to Prototype
Non-Magnetic Metal Wheels
Highly Flexible Fully Equalized Trucks
Smooth tracking Free Rolling Contoured Insulated Axles
RP-25 Free Rrolling Wheels
Patent number 7,434,518 B2Package Includes:
(2) Each #1563 A.S.F. Ride Control 50-Ton Self Centering Two Piece Trucks (assembled)
(2) Clip on Brake Pads
(2) Each Self Centering Bushing
(2) Each #2 Screw
"HGC" Two Piece Fully Equalized Trucks
The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track.
Mounts with a #2 or 2-56 screw.
The A.S.F. A-3 Ride Control 50-ton freight truck was introduced in the 1940's and is one of the forerunners of modern freight trucks. Features embodied into this design include a longer spring travel, no spring planks and constant friction control using friction castings in the bolster to dampen excessive lateral roll of the car. These design features allowed for a higher train speed with less danger of derailment than previous designs. ASF sold over 140,000 sets by 1949. This truck is excellent for modeling the transition era up to 1994 when friction bearings were no longer allowed in interchange service.
"HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance.HO-Scale
"HGC" Two Piece Fully Equalized Trucks Features:
Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track.
Code 88 (.088) #533 33" Ribbed Back Wheels
"HGC" Weighs nearly the same as Metal Trucks
Superior Rolling Ability
Clip on Brake Pads
Accurate Markings
Incredible Detail True to Prototype
Non-Magnetic Metal Wheels
Highly Flexible Fully Equalized Trucks
Smooth tracking Free Rolling Contoured Insulated Axles
RP-25 Free Rrolling Wheels
Patent number 7,434,518 B2Package Includes:
(2) Each #1563 A.S.F. Ride Control 50-Ton Self Centering Two Piece Trucks (assembled)
(2) Clip on Brake Pads
(2) Each Self Centering Bushing
(2) Each #2 Screw
