Honeywell MK9540-37A38 VoyagerCG 9540 Handheld 1D Barcode Reader, Black

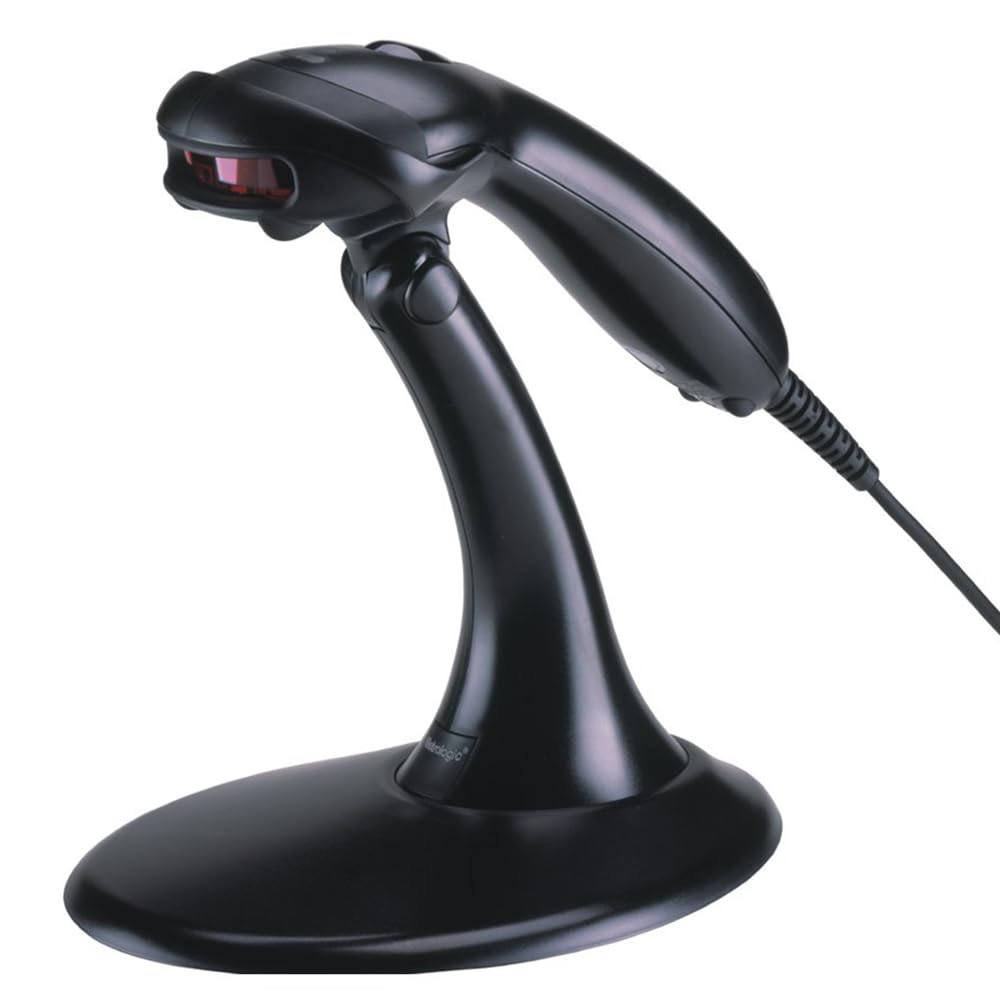

This Honeywell MK9540-37A38 VoyagerCG 9540 black handheld single-line barcode reader with USB cable and stand scans and decodes linear one-dimensional (1D) barcodes, including GS1 DataBar and RSS codes. The barcode reader can be handheld or placed in the included stand for use while in a fixed vertical position. A 650-nm laser produces a single line of light that can scan barcodes at a speed of up to 72 scan lines per second in continuous mode. A CodeGate setting automatically activates the laser to display a scan line when a barcode is placed within range of the device's infrared (IR) sensor but prevents barcode data from being transmitted until a button is pushed to help reduce accidental scans. The reader has tri-colored LEDs to indicate status and can be programmed to beep when a barcode has been successfully scanned. The included USB cable connects the barcode reader to the host system (not included) to transmit barcode data. An RS-232 cable, keyboard wedge, IBM-46xx (RS485), OCIA, Laser Emulation, or light pen wand emulation (all sold separately) can also be used. For a complete set of product specifications, please see the manufacturer's brochure. SpecificationsInput voltage5 VDC +/- 0.25VHost system interfacesUSB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation (all sold separately)Scan patternSingle scan lineDecode capabilityReads standard 1D and GS1 DataBarScan speed72 scan lines per secondScan angle50 degrees (horizontal)Pitch; skew68 degrees; 52 degreesPrint contrast35% minimum reflectance differenceDrop specsDesigned to withstand 1.5 m (5 ft.) dropsEnvironmental sealingSealed to resists airborne particulate contaminantsReader dimensions*7.8 x 3.1 x 2.2 inches/198 x 78 x 56 mm (L x W x H)Reader weight5.3 oz. (149 g)ColorBlack* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top.Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities.Honeywell manufactures products, materials, and technologies used in aerospace, transportation, and automation and control systems. The company, founded in 1885, is headquartered in Morristown, NJ. What's in the Box? Honeywell VoyagerCG MS9540 barcode reader Stand USB cable Instructions
