Description?

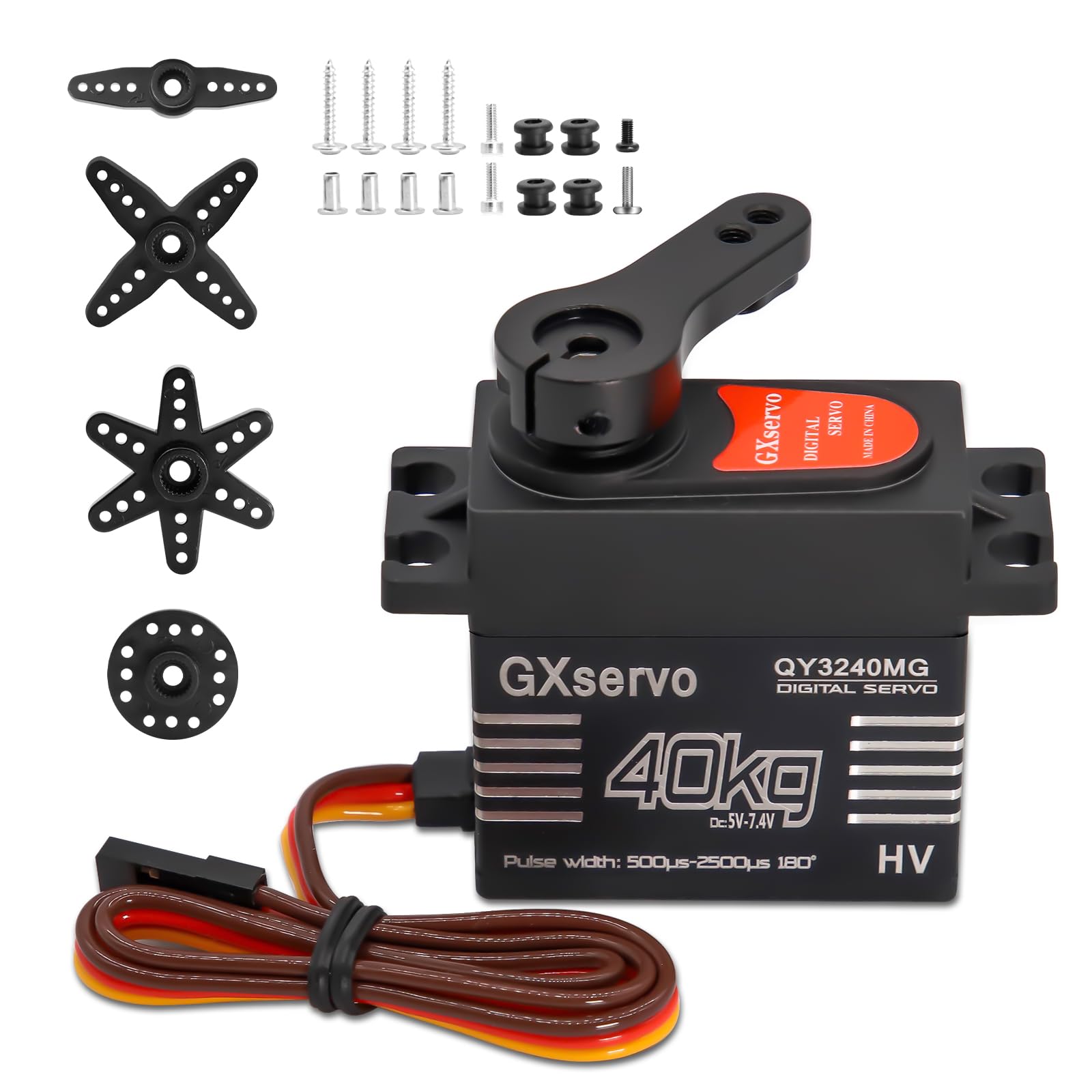

The Binghe GXservo 40KG Hollow Cup Digital Servo is engineered for high-torque applications, featuring a robust metal gear construction with 416+304 stainless steel gears.
Ideal for use in educational robots, industrial automation, RC vehicles, medical devices, and remote-controlled models, this servo offers exceptional performance and reliability.
With programmable features, including angle, direction, and neutral position adjustments, the GXservo provides flexibility for a variety of projects.
Built to withstand challenging environments, the servo's IP65 waterproof rating protects it from dust and moisture.
Specification?
Item Type: 40KG Digital Servo
Shell Material: Aluminum Alloy
Product Color: Black
Product Size: 40x20x41mm / 1.6x0.8x1.6in
Product Weight: Approx. 88g / 3.1oz
Number of Teeth: 25T
Rotation Angle: 180°
Dead Zone: 3?s
Working Frequency: 1520?s/330hz
Working Voltage: 5V-7.4V
Speed (6V): 0.2 Second/60°
Speed (7.4V): 0.18 Seconds/60°
Locked Rotor Torque (6V): 36kg/cm
Locked Rotor Torque (7.4V): 40kg/cm
Plug: JR Plug
Torque: 40KG-cm
Gear: Metal gear
Waterproof grade: IP65
Programming: Support USB programming card
Adjustment angle: adjustable
Applicable Models: Suitable for 1/8 1/10 RC Car and RC Robot, such as for SCX10
Package List:
1 x RC Digital Servo 40KG
5 x Plastic Servo Arm
4 x Screw Barrel
4 x Rubber Pad
1 x Metal Servo Arm
7 x Screw
